Industrial UV Printer
AI Intelligent Vision Positioning · Automated Conveyor System · Industrial LED UV Printing
| Printer | KAIOU KO900 CCD UV Hybrid printer |
| Print Head | Ricoh G6 Head*2-8pcs |
| Working Procedure | CCD camera scanning and printing synchronously |
| Visual system | Industrial Linear 1200dpi High Precision Camera |
| Ink Type | UV Ink |
| Ink System | Dual negative pressure system/white ink stirring system |
| Ink Color | W+V+CMYK (LC LM LK LLK optional) |
| Printing size &Recognition range | 600*2000mm / 900*2000mm / 1200*2000mm |
| Printing height | 0~ 150mm adjustable |
| Media Type | Personalized gifts,handicrafts,mobile case,glass, acrylic,ceramics,PVC,other promotion item |
| Printing accuracy | 720x900dpi/720x1200dpi/720x1800dpi |
The KAIOU 3220 is a large-format industrial UV panel printing machine designed for furniture manufacturers, cabinet door producers and building material factories.
With a 3200 × 2000mm printing area, 8 Ricoh Gen6 printheads and CMYK, white ink and varnish printing capabilities, it enables direct printing on compatible decorative wall panels, furniture panels, cabinet doors, acrylic sheets, glass panels and wooden boards.
From marble-inspired decorative surfaces to customized furniture designs, the KAIOU 3220 helps manufacturers bring large-format UV printing in-house, expand product customization and reduce dependence on outsourced printing.
Best
Model Number | KAIOU3220UV flatbed printer |
Print Head | 8 pcs Ricoh G6 |
Printing area | 3200*2000mm |
Print Direction | Bi-Direction/Uni-Direction |
Ink Type | UV Ink |
Print Speed | Standard mode:45m/h 6pass |
High-precision mode: 30m/h 8pass | |
Ink Color | CMYK+W+V |
RIP Software | Photoprint |
Ink System | CISS With White Ink Circulation System |
Media Thickness | Max 350 mm |
Resolution | 1200Dpi*1200Dpi |
Power | 6500W |
Power Requrement | 208V-220V,50HZ/60HZ 32A |
Warranty | 1 Year Warranty(except printhead),Lifetime Maintenance |
Printer Dimension | 5480*2780*1530(mm), N.W:1800KG |
Packing Size | 2300*5800*1920(mm), G.W:3600KG |
Looking for a reliable industrial UV flatbed printer for large-format manufacturing?
KAIOU 2513 is a large-format UV flatbed printing machine designed for furniture manufacturers, glass and acrylic processors, and home decor and gift wholesalers who want to bring customized printing in-house.
With a 2500 × 1300mm printing area, Ricoh Gen6 industrial printheads, a magnetic levitation motion system and customizable printing heights from 100mm to 350mm, KAIOU 2513 handles demanding production requirements across multiple industries.
Available with 2–12 Ricoh G6 printheads, this industrial UV printer offers different production configurations to match your required printing speed, output quality and investment budget.
From decorative wall panels and cabinet doors to glass artwork, acrylic displays and customized home decor products, KAIOU 2513 helps manufacturers expand product capabilities, reduce outsourcing costs and respond faster to market demand.
Get a factory-direct quote from KAIOU and req
Best
| Specification | KAIOU 2513 UV Flatbed Printer |
|---|---|
| Printing Area | 2500 × 1300mm |
| Printhead | Ricoh G6 Industrial Printhead |
| Printhead number | 2-12pcs |
| Maximum Printing Height | 100mm ( 350mm option or OEM) |
| Ink Configuration | CMYK + White + Varnish ( LM LC option) |
| Curing | UV LED |
| Resolution | Up to 2880 dpi |
| Positioning System | CCD Vision Positioning System |
| Printing Technology | UV LED Inkjet Printing |
| Materials | Ceramic, Acrylic, Wood, Glass, Metal, Crystal, Leather, PVC, ABS, etc. |
| Application | Industrial Custom Printing, Decoration, Signage, Manufacturing or other |
CCD Vision Positioning | Scan and Print Together | Continuous UV Printing | Optional AI Robot Arm Automation

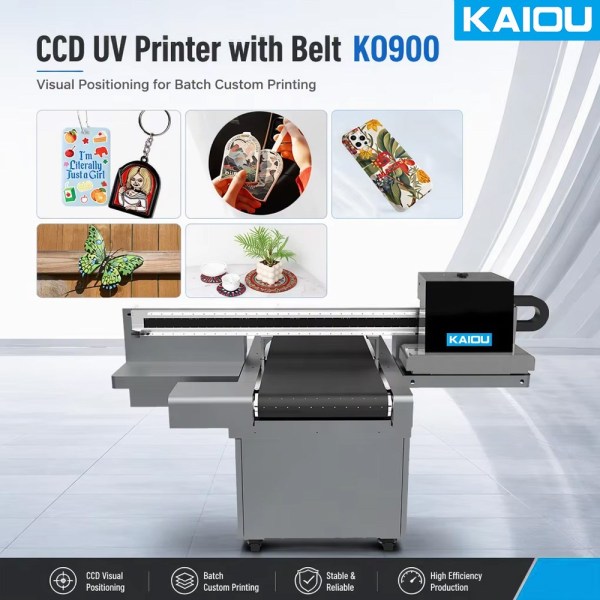

KAIOU KO900 is an industrial UV printer with a conveyor belt system, developed for manufacturers who want to move beyond manual product positioning and build a more efficient, scalable production process. By combining CCD visual recognition, automatic artwork alignment and continuous conveyor feeding, this machine helps streamline printing on compatible products with different shapes, sizes and designs.
Unlike a conventional flatbed printer that often requires operators to position each item individually, the KO900 conveyor UV printer identifies product positions through its vision system and coordinates the printing process accordingly. This makes it a practical choice for manufacturers handling repeat orders, multiple SKUs and customized products, especially when consistent positioning and production efficiency are important.
For businesses looking to take automation further, the KO900 can als
New
| Model | KO-900 |
| Equipment model | GC-Visual Guide UV |
| Printing size | 900mm |
| Visual system | Industrial Linear 1200DPl High Precision Camera |
| Recognition range | 900mm |
| Nozzle type | Ricoh G5i/G6, Epson i3200 |
| Number ofnozzles | 2~8 |
| Printing color | W+V+KCMY (LC LM LK LLK optional) |
| Printing accuracy | 720x900dpi/720x1200dpi/720x1800dpi |
| Printing height | 150mm |
| Ink system | Dual-channel dual negative pressure system/white ink stirring |
| Transmission system | High-precision magnetic suspension guide rail/double Y power-off self-locking motor |
| Output software | Photoprint |
| Data interface | Gigabit network port/USB3.0 |
| Temperature and humidity | 20-30 degrees celsius/40~80% (no condensation) |
| Electricity requirements | 200-240VAc, single phase electricity, 50/60Hz, current 32 amps1200KG |
| Machine weight | 1200KG |
| Equipment size | 286*208*160cm |
| Wooden box size | 300*220*170cm |
Large Format 2513 UV Printer for Acrylic & Industrial Printing, Max printing speed 148 m²/h, KAIOU 2513UV Flatbed printer for printing large signage, billboards, and decorative panels, Suitable for high volume producers
| Model | KO-2513 |
| Application | billboards, outdoor signage, vehicle wraps, and window decals，glass, wood, tiles, and ceramics，Furniture Manufacturers，Art and Graphics Studios,Phone Case,PVC Card,Acrylic,Glass,Ceramic,Metal Leather, |
| Printhead | 3-18pcs Ricoh Gen6/Gen5 |
| Print width | 2500*1300mm |
| Print height | 0~100mm |
| Color | CMYK+LC+LM+W+Varnish |
| Software | Maintop, Photoprint, PrintFactory |
| Ink Droplet Size | 7-21PL |
| Printer size | 451*217*148cm |
| Print weight | 950kg |
| Package | Wooden |
