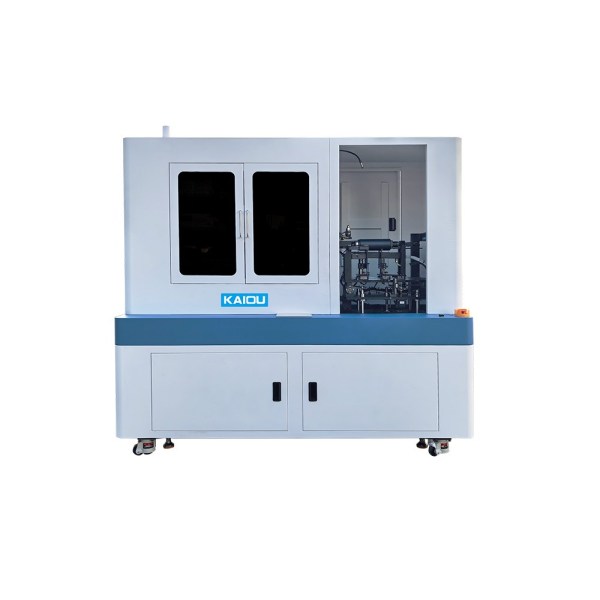

| Model | DF1 360 rotary uv printer |
| Products | Cylinder, Conical, Special shape printing |
| Print speed | As fast as 20S/pcs |
| Diameter | 45mm -125mm |
| Taper | 0-5 degrees |
| Print length | 40mm-270mm |
| Print mode | Color white varnish |
| Resolution | 600*1800DP1 |
| Ink drop | 3.5PL |
| Color | K、C、M、Y、W、V |
| Curing system | LED UV lamp |
| Cleaning system | Auoto position cleaning system |
| Machine dimension | 1990*685*1850mm |
| Weight | 450KG |
| Certification | CE/ROHS/SGS |

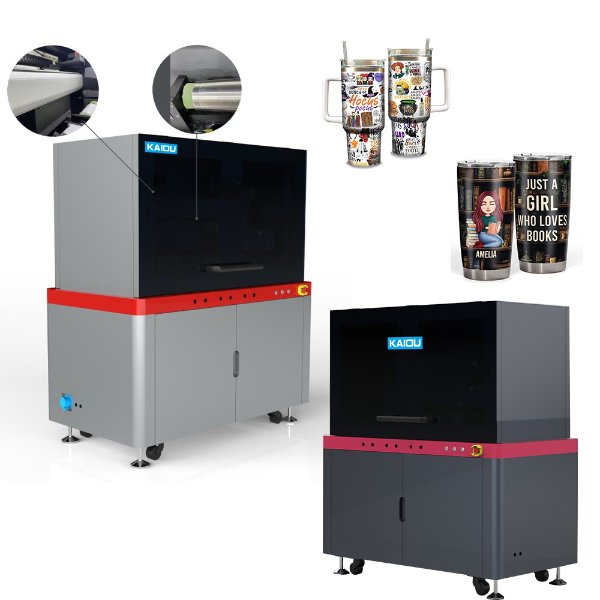

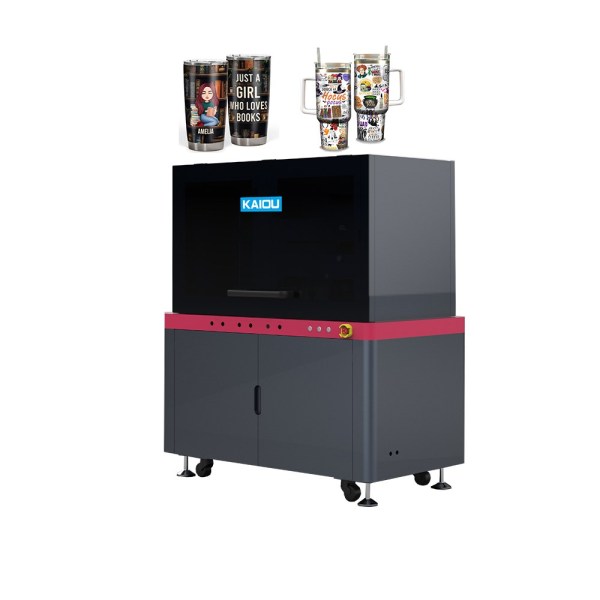

| Model: | 360 rotary UV printer |
| Print Taper | 0-8 |
| Printhead | Epson |
| Ink | uv ink |
| Print Diameter | 30mm-120mm |
| Printing precision | 720*720dpi |
| Print color | CMYK+W+V |
| Software | Pro Color Software |
| Print Length | 40mm~300mm |
| Print Method | 360 degree Tumbler |
| Printing speed | 2~4MIN |
| Clean way | Auto/Manual |
| Ink supply | Automatic ink supply |
| Working environment | Temperature/Humidity:20-30C/30%-60% |
| Applicable products | Print on cylindrical,irregular tapered or conical objects |
| Ink monitoring | Ink Out Alert |
| Image format | TIFF,JPEG..EPS,PDF ect |
| Printer size | 1.23*0.73*0.86m |
| Printhead number | 1 |
| Lifting function | Platform lifting |
| Printer size | 1.23*0.73*0.86m |
| Anti-clogging nozzle | Flash spray/automaticmixing |
| Power system | Servo motor + silentguideway |
Product Model | KO-380UV printer | ||
Print size | Print diameter 250mm-280mm(customizable size) | ||
Ink distribution method | C,M,Y,K,W,V | ||
| Application | Create stunning, full-color images prints on cylindrical & tapered & conical items with 360 rotary UV printing. Work on various tumbler, water bottle, vacuum flask, golf balls, candles, cans, wine bottle etc. | ||
Printer width | Max. 300mm (customizable size)/Min.60mm | ||
Print height | High drop 10mm for G5i | ||
Printhead | 1-4pcs Ricoh G5i /Epson i1600 | ||
Printing accuracy | 720x900dpi/720 x 1200dpi/720x1800dpi | ||
Ink system | Dual negative pressure system /1.5L ink tank/White ink stirring | ||
Software | Maintop | ||
Data interface | Gigabit network port/USB3.0 | ||
Working environment | Temperature 20-30°CHumidity40-80% (non-condensing) | ||
Electricity | 200-240VAC, single phase, 50/60Hz, 32 amps | ||
Operating system | Win7,8,10 | ||
Machine size/N.W | 1460x800x1680mm/500kg | ||
Package size/G.W | 1600x900x1800mm/650kg | ||
Production speed (G5i) (Wine bottle for example) | Highspeed mode 4PASS | Production mode 6PASS | High precision mode 8PASS |
CMYK | 45S/PCS | 68S/PCS | 90S/PCS |
CMYK+W | 60S/PCS | 90S/PCS | 120S/PCS |
CMYK+W+V | 90S/PCS | 135S/PCS | 180S/PCS |
