Flatbed UV Printer
Quick Answer：
If you need accurate positioning, stable quality, and flexible material support, a CCD 6090 UV printer is one of the best choices for small to medium custom printing businesses.
It is especially suitable for phone cases, acrylic, wood, PVC, leather, and promotional products.
For small or medium custom printing businesses, a CCD 6090 UV printer is preferred when accuracy and flexibility matter more than speed.
| Printing Size | 600 × 900 mm |
| Printhead Options | Epson i1600 / i3200 |
| Ink Type | UV ink (CMYK + White + Varnish optional) |
| Positioning System | Industrial CCD visual system |
| Supported Materials | Acrylic, PVC, Wood, Glass, Metal, Leather |
| Typical Accuracy | ±0.1 mm |
| Application Mode | Flatbed UV printing |
KAIOU 6090 UV Hybrid Printer is engineered for businesses that need both flatbed and roll printing in a compact, powerful system. Whether you’re printing on acrylic sheets, wood panels, packaging materials, or roll media like PET film, UV DTF film, soft vinyl, and banners — this hybrid printer delivers exceptional quality with unmatched versatility.
| Technology system | Visual positioning scanning UV printing |
| RIP Software | RIIN |
| Printer Power | 3000W |
| Machine Dimension/N.W | 1700*1350*840/140KG |
| Package Dimension/G.W | 1800*1520*960 /230KG |
| Maximum Print width | 600*900mm |
| Printhead | EPSON XP600/i3200-U1/ Ricoh G5i |
| Printhead Height | 1-200mm |
| Board | Hoson board |
| Print Color | CMYK+W+V+V (Foiling) |
| Ink system | Negative pressure system |
| Print speed m²/h D 3pass | 20/40/60 |
| Print speed m²/h S 4pass | 14/28/42 |
| Print speed m²/h Q 6pass | 10/20/30 |
| Print speed m²/h HQ 8pass | 7/14/21 |

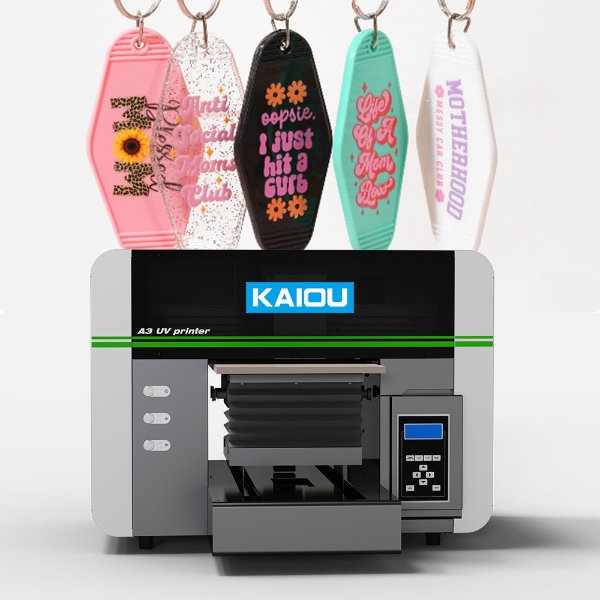

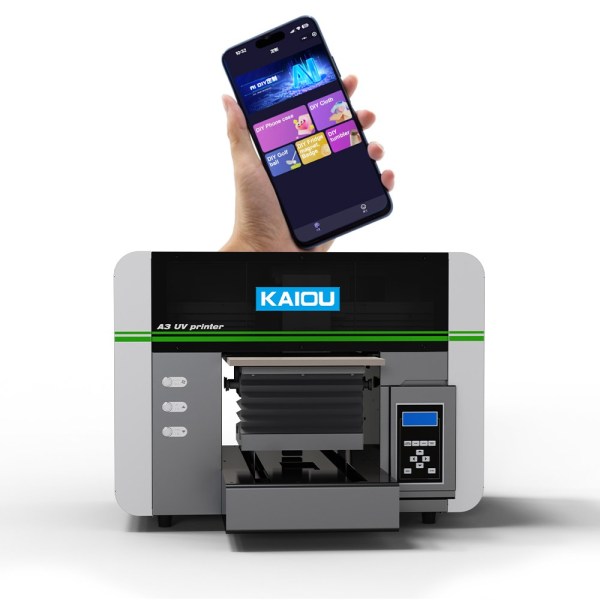

Affordable entry-level UV DTF solution
Compact desktop size for home use
Quick ROI for e-commerce & studios
Prints vivid colors with CMYK+W+V
| Product model: | A3 UV flatbed Printer |
| Print head: | xp600/3200HD |
| Output color: | CMYK+W/CMCYK+W+V(Different prices) |
| Printing height: | 90mm |
| Print quality: | Resolution 720/1440/2880/5760 |
| Positioning system: | Visual positioning(purchased separately) |
| Operating system: | Win7/8/10, etc |
| Height measurement: | Fully automatic laser altimetry |
| Power: | AC220/110.50HZ~60HZ |
| Cylinder: | supports printing |
| Size: | Printer: 75*75.5*56.3cm; Package: 80*85*90cm |
| Weight: | Printer: 52kg; Package: 80kg |

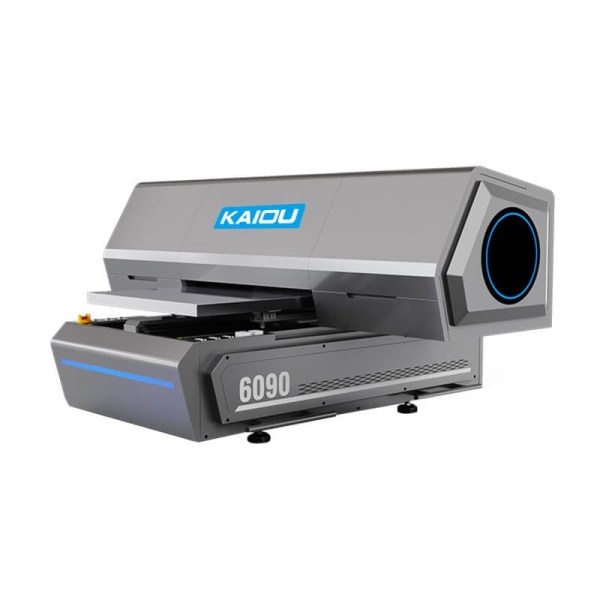

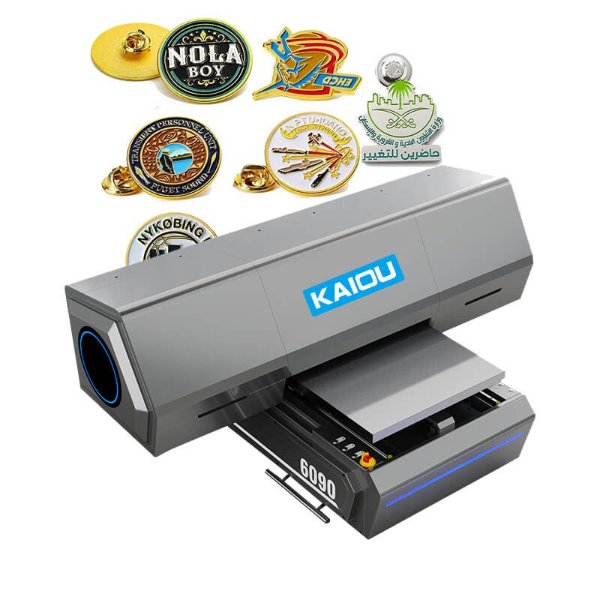

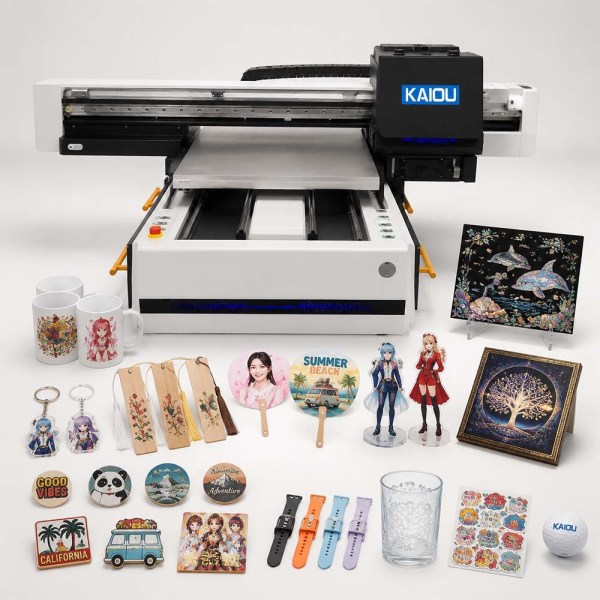

KAIOU 6090 UV Flatbed Printer – 600×900mm size, 20cm print height, grey-black design, with Epson, Ricoh, or G5i heads. Print on acrylic, wood, glass & more.
| Model | KAIOU 6090 UV Flatbed Printer |
| Max Print Size | 600mm x 900mm |
| Max Print Height | 200mm (20cm) |
| Printheads (Optional) | Epson XP600 / i3200 / Ricoh / G5i |
| Ink Channels | CMYK + White + Varnish |
| Supported Materials | Acrylic, wood, leather, glass, metal, etc. |
| Platform | Vacuum suction + anti-static |
| Machine Color | Grey-black with clear protective cover |
| Control System | Touchscreen panel + software (Windows-based) |
| Dimensions / Weight | ~130kg / 1650mm x 1100mm x 650mm |
| Power Supply | AC220V / 50-60Hz |

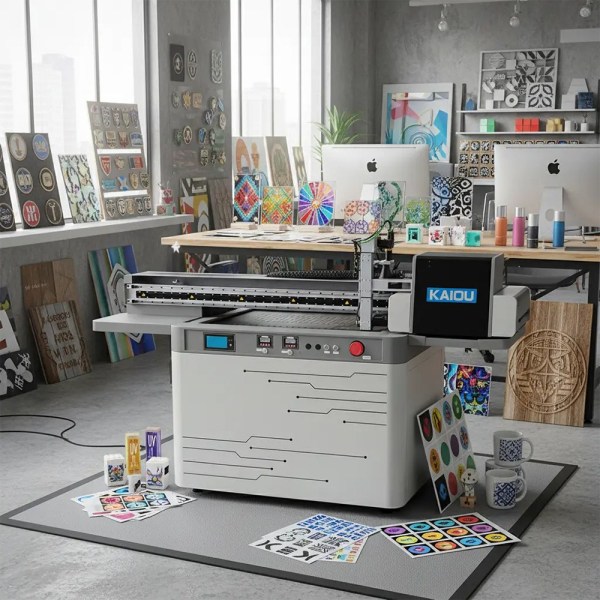

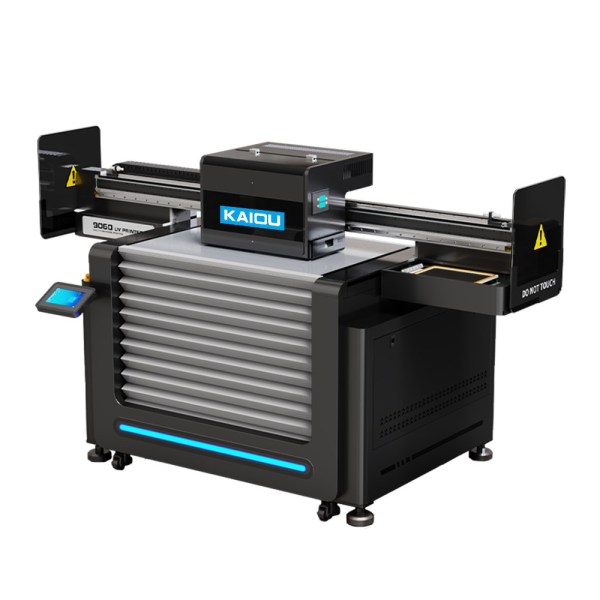

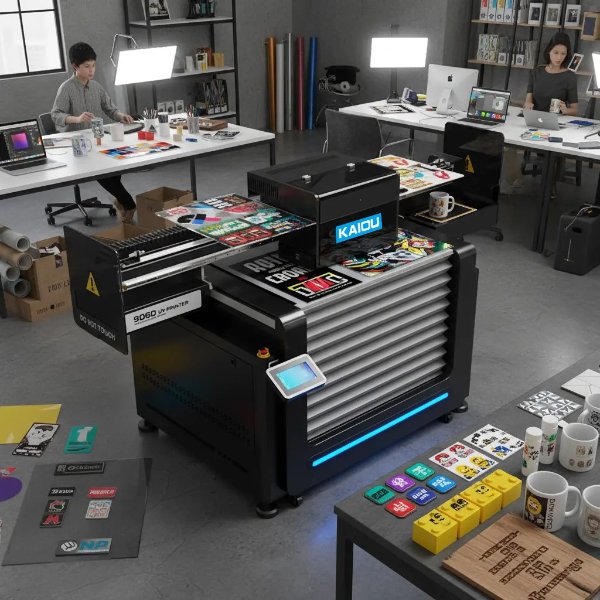

Mid-Sized UV Flatbed Printer for Growing Businesses | Supports printing on acrylic, wood, leather, phone cases, metal sheets, and other flat materials up to 90×60cm
| Model: | KO9060UV |
| Product Name: | High Drop UV Printer |
| Printhead Model: | Ricoh GH2220/13200 |
| Print Colour: | 6 Colours+White+Varnish |
| Power: | 700W |
| Curing System: | led-UV light |
| Print Size: | 90*60cm |
| Droplet Size: | 3~5pl |
| Print Height: | 500mm |
| Control Board: | Self-developed |
| Power System: | Silent Guide+Motor |
| Cleaning System: | Auto/Manual |
| Ink Level Monitoring: | Lack of Ink Alarm |
| Curing Duration: | Instant Dry |
| Anti-blocking Function: | Flash Spray/Auto Stir |
| Special Effects: | Embossing,Varnish |
| Positioning Device: | Visual Positioning(need to purchase separately) |
| Equipment Size: | 2278*1268*1270mm |
| Weight: | 180kg |

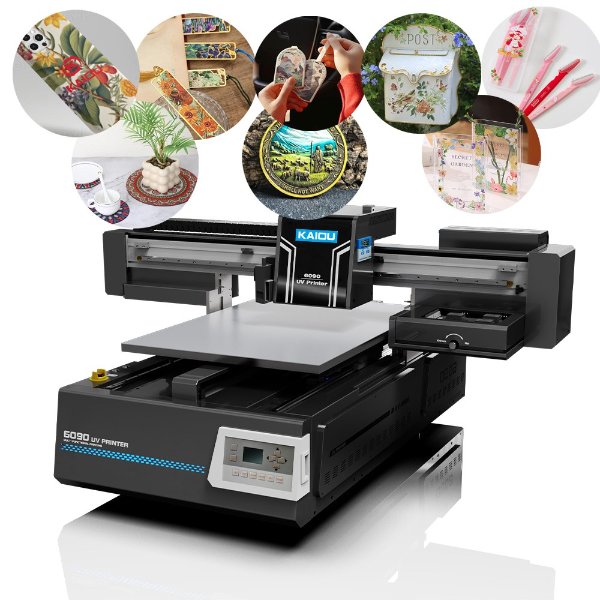

Discover the Kaiou 6090 UV Printer – Perfect for printing on acrylic, metal, wood & more. Trusted by businesses worldwide. Factory-direct pricing.
| Model | KO6090UVB uv flatbed printer |
| Printhead: | Epson XP600 |
| Application | phone cases, keychains, mugs, Medals, trophies, decorative panels, custom packaging for luxury items, promotional items |
| Same service motor: | Lesai low voltage servo motor |
| Print size: | 600*900mm |
| Print color: | CMYK+W+varnish |
| Print height: | 150mm |
| Motherboard: | Hoson board |
| Lifting function: | Beam lifting |
| Number of nozzles: | 2~3(optional) |
| Inkjet technology: | As small as 3.5pl, smart change |
| printing speed: | 4㎡/h |
| Equipment size: | 1.70*1.35*0.84m |
| equipment weight: | 140kg |

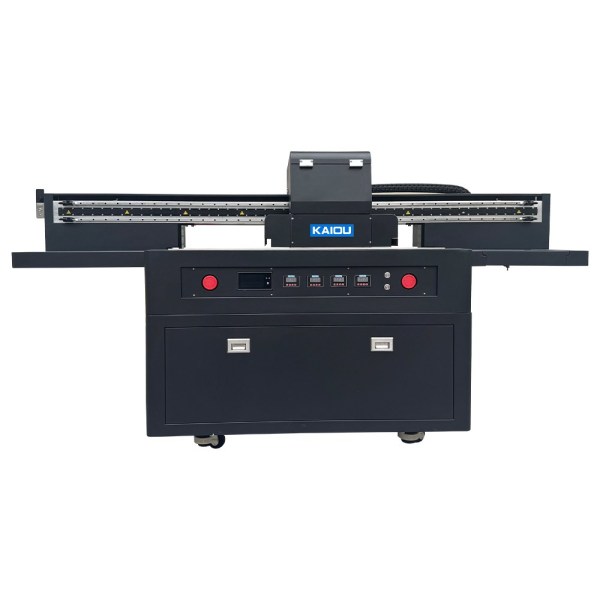

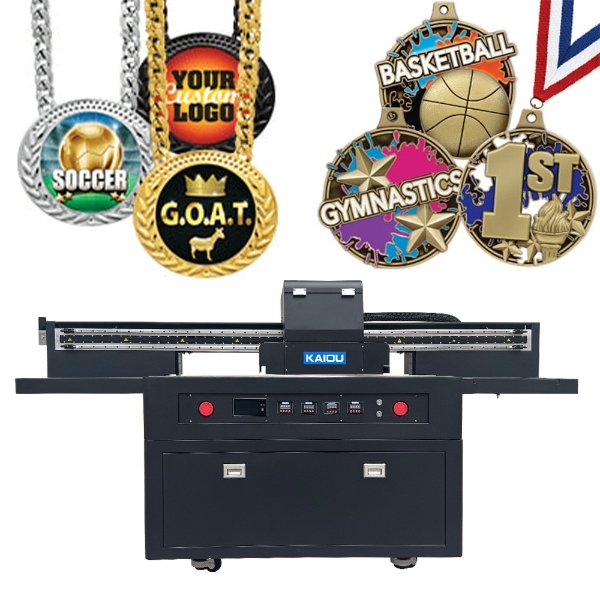

About 10m²/h printing speed, high-efficiency results for small-format items like medals, challenge coins, badges, and more.
| Model | KO1209 CCD UV Flatbed Printer |
| Maximum printing width | Horizontal 1200MM*Vertical 900MM |
| Print head | Epson i1600/i3200 |
| Printing media thickness | 1 mm - 120 mm optional height 250MM |
| Nozzle cleaning method | One-button negative pressure cleaning |
| Scanning range | 1200*900MM |
| Raster strips | High-end magnetic grating strips |
| Printing color | CMYK+W (red yellow blue black + white) |
| Curing device | LED UV lamp curing |
| Y-axis transmission method | Double screw + double guide rails |
| Maximum printing resolution | 300-2400DPI |
| Ink heating method | Secondary ink cartridge + spray car bottom plate heating module |
| Printing speed | 6-10m²/h |
| X-axis transmission method | Linear motor |
| Frame design | High stability gantry frame |
| Machine weight | 700KG |
| Equipment power supply/power | 220V/2500-4500W |
| Equipment size | Length*width*height 2760mm*1680mm*1380mm |

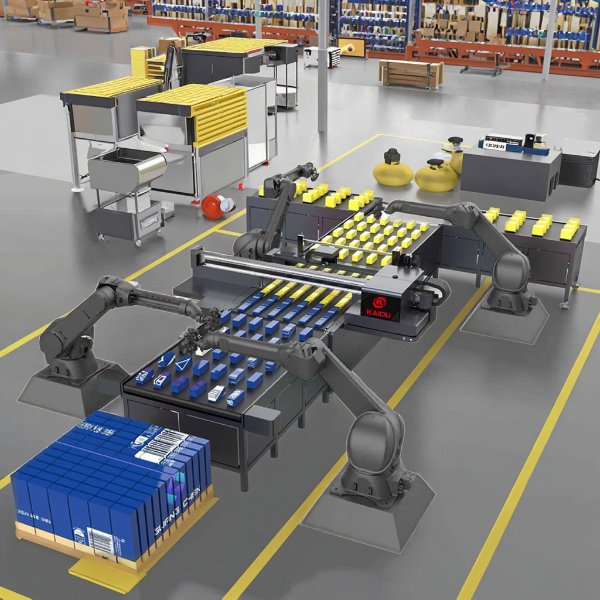

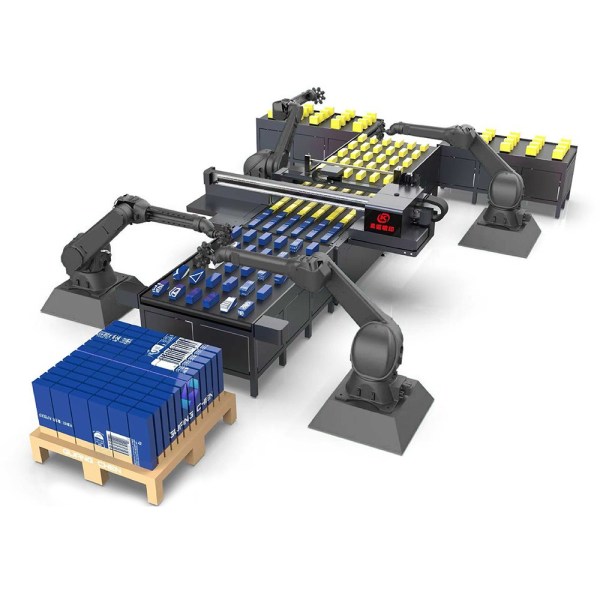

Automatic scan & print, Visual localization- NO NEED FOR MANUAL PLACEMENT/ ASSEMBLY LINE UV PRINTER
New
| Model | KO-900 |
| Equipment model | GC-Visual Guide UV |
| Printing size | 900mm |
| Visual system | Industrial Linear 1200DPl High Precision Camera |
| Recognition range | 900mm |
| Nozzle type | Ricoh G5i/G6, Epson i3200 |
| Number ofnozzles | 2~8 |
| Printing color | W+V+KCMY (LC LM LK LLK optional) |
| Printing accuracy | 720x900dpi/720x1200dpi/720x1800dpi |
| Printing height | 150mm |
| Ink system | Dual-channel dual negative pressure system/white ink stirring |
| Transmission system | High-precision magnetic suspension guide rail/double Y power-off self-locking motor |
| Output software | Photoprint |
| Data interface | Gigabit network port/USB3.0 |
| Temperature and humidity | 20-30 degrees celsius/40~80% (no condensation) |
| Electricity requirements | 200-240VAc, single phase electricity, 50/60Hz, current 32 amps1200KG |
| Machine weight | 1200KG |
| Equipment size | 286*208*160cm |
| Wooden box size | 300*220*170cm |

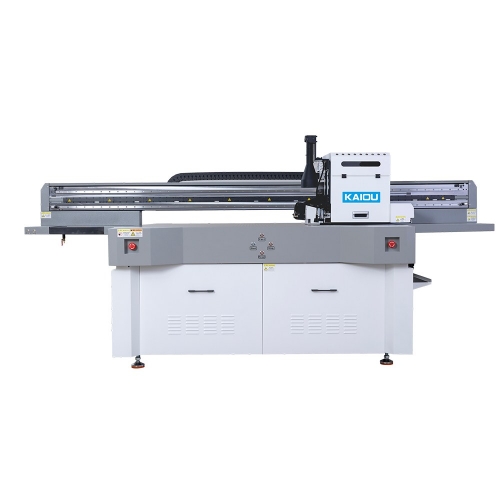

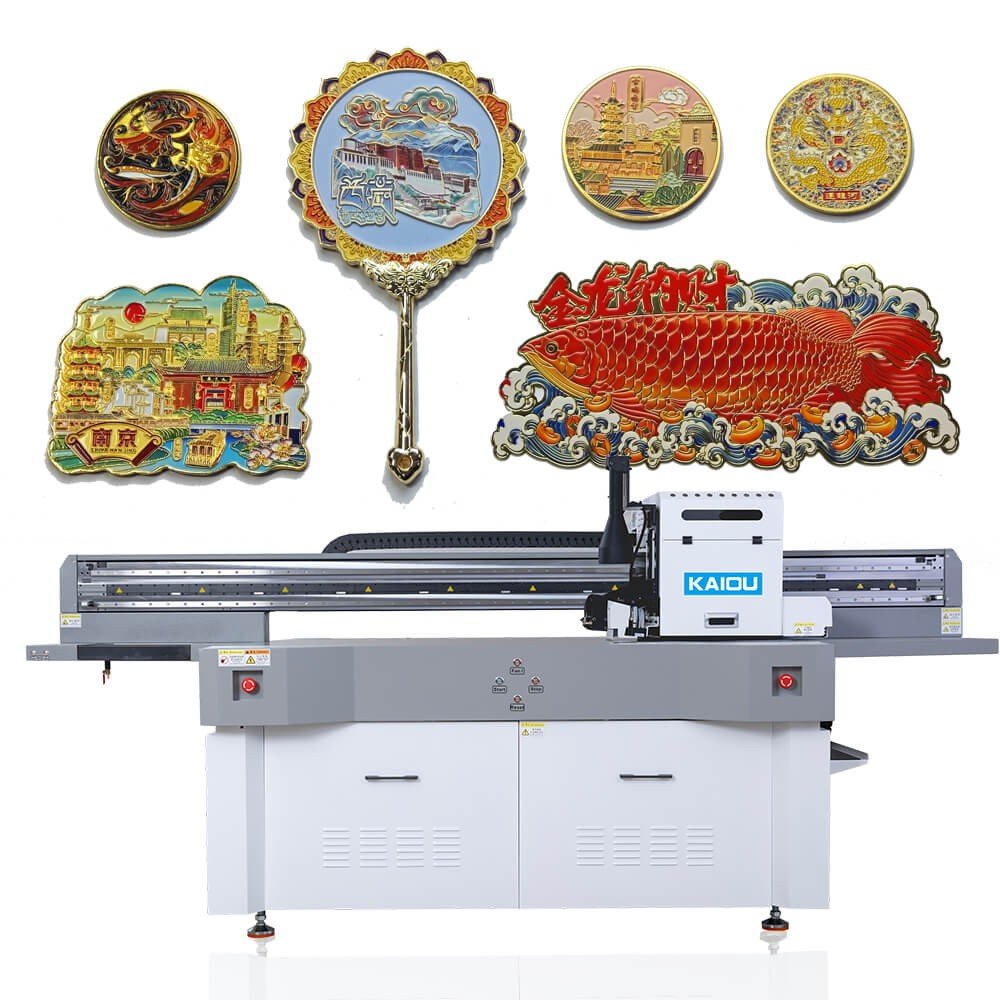

Ricoh G5i/ Toshiba CE4M/ Epson i3200 printhead, Printing speed 2000pcs coin/ h
| Model | KO-1612 |
| Application | phone cases, keychains, mugs, badge, token, artwork, decorative panels, custom packaging for luxury items, promotional items, golf ball, pen, USB drivers, Lipstick tubes, cosmetic boxes, toy Rubik's Cubes, leather etc. |
| Printhead | Ricoh G5i/ Toshiba CE4M/ Epson i3200 printhead |
| Print width | 1600*1200mm |
| Print height | 0~100mm |
| Speed | Up to 2000 coins/hour |
| Color | CMYK+W+varnish; support up to 8 colors+varnish |
| Software | RIIN |
| Ink Droplet Size | 3.5PL； 7-21PL |
| Printer size | 320*210*140cm |
| Printer weight | 720kg |
| Package | Wooden |

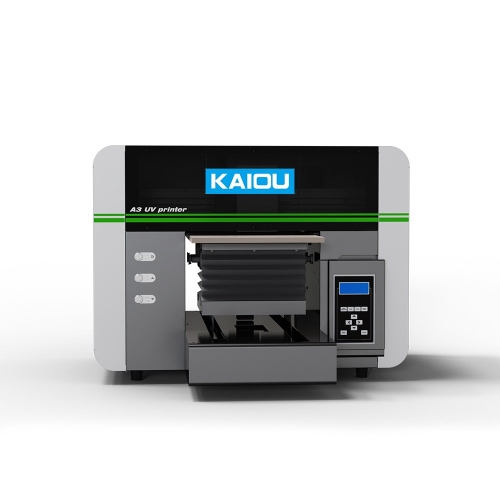

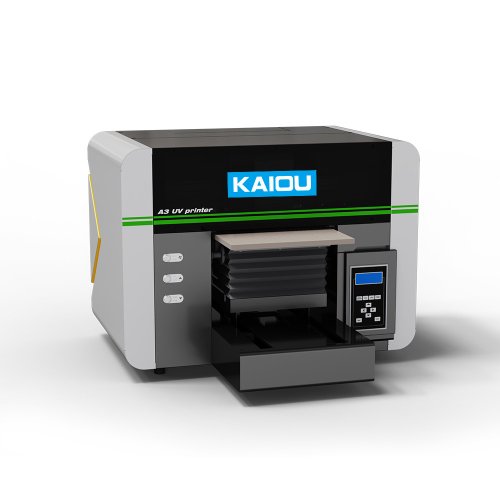

3200HD/ TX800/ XP600 printhead | Max printing height 90mm| Compact yet powerful. Supports CMYK + White + Varnish printing on film for transfer onto all surfaces – wood, plastic, glass, leather, metal.
| Model | KO-A3UV |
| Application | small promotion item, phone cases, keychains,badge, token, ID cards, labels ect. |
| Printhead | 3200HD/ TX800/ xp600(Optional) |
| Print width | A3 |
| Print height | 0~90mm |
| Speed | |
| Color | CMYK+W+varnish |
| Software | RIIN |
| Ink Droplet Size | 3.5PL |
| Printer size | 75*75.5*56.3cm |
| Printer weight | 52kg |
| Package | Wooden |

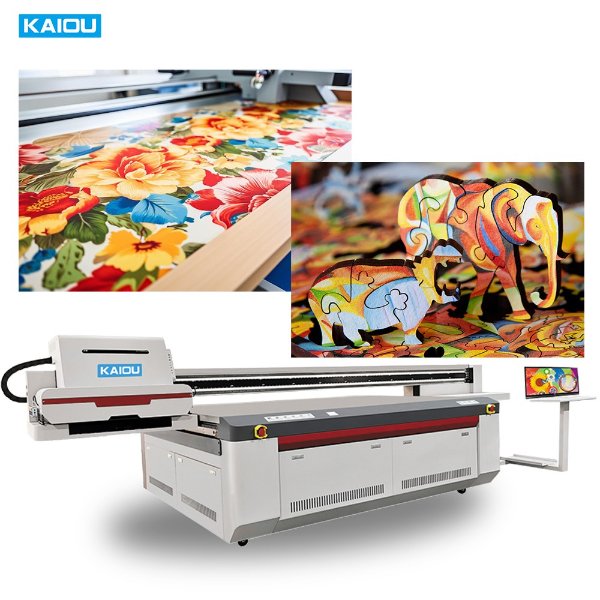

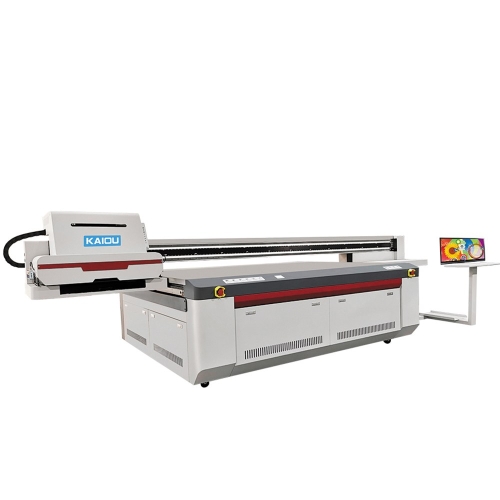

Large Format 2513 UV Printer for Acrylic & Industrial Printing, Max printing speed 148 m²/h, KAIOU 2513UV Flatbed printer for printing large signage, billboards, and decorative panels, Suitable for high volume producers
| Model | KO-2513 |
| Application | billboards, outdoor signage, vehicle wraps, and window decals，glass, wood, tiles, and ceramics，Furniture Manufacturers，Art and Graphics Studios,Phone Case,PVC Card,Acrylic,Glass,Ceramic,Metal Leather, |
| Printhead | 3-18pcs Ricoh Gen6/Gen5 |
| Print width | 2500*1300mm |
| Print height | 0~100mm |
| Color | CMYK+LC+LM+W+Varnish |
| Software | Maintop, Photoprint, PrintFactory |
| Ink Droplet Size | 7-21PL |
| Printer size | 451*217*148cm |
| Print weight | 950kg |
| Package | Wooden |

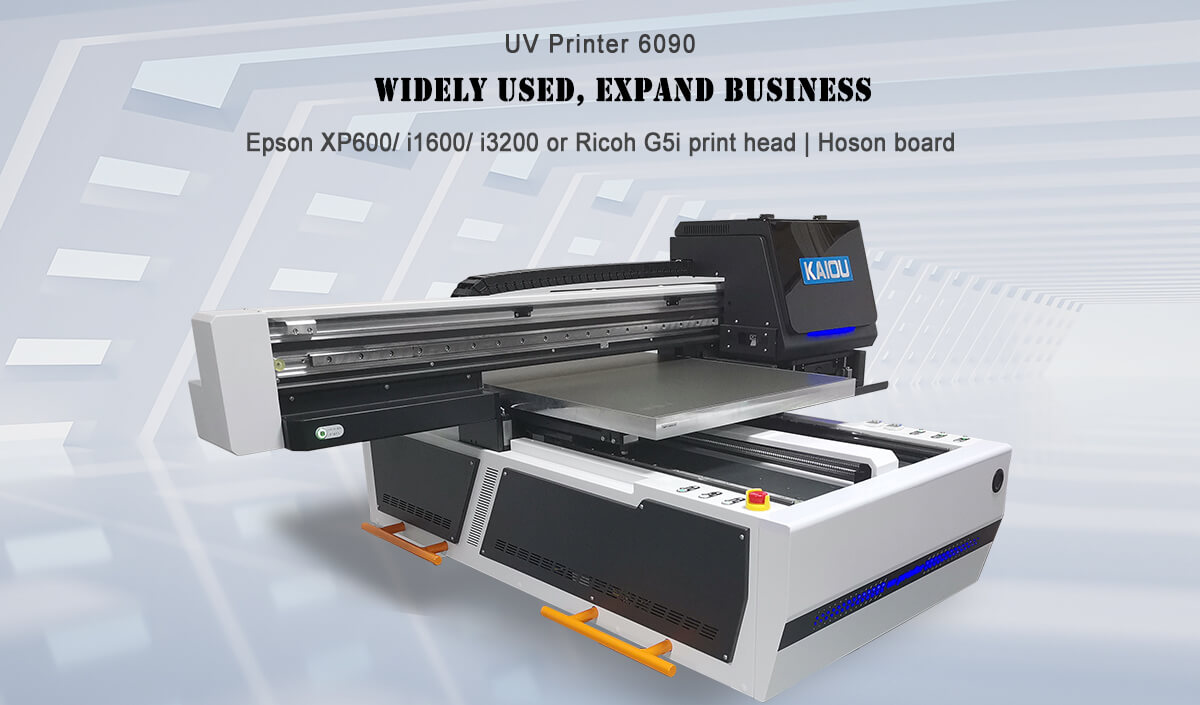

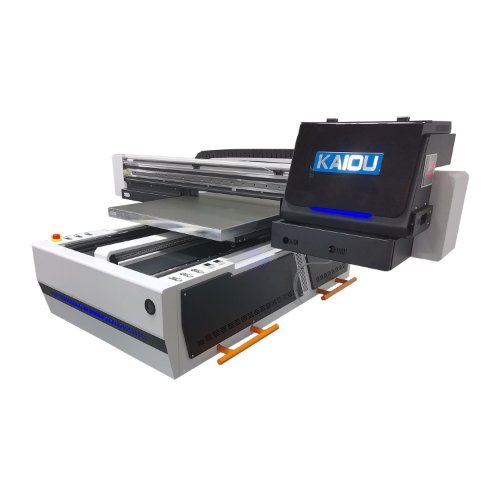

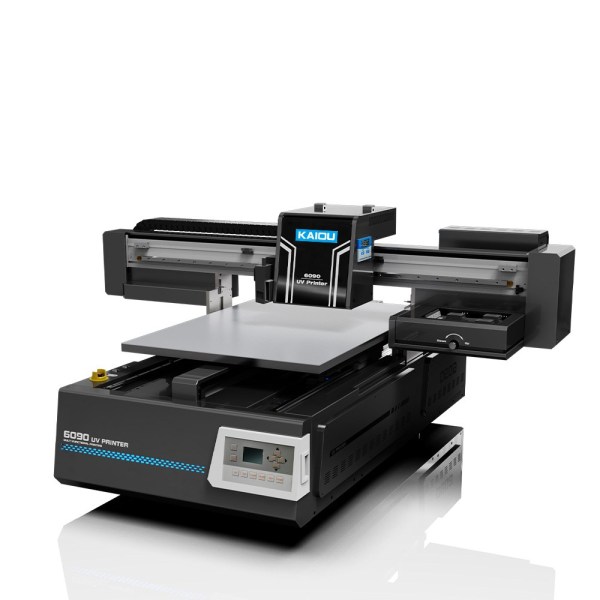

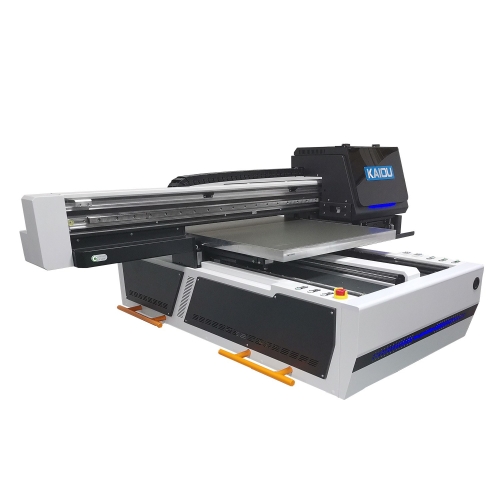

3.5pl, Printing speed max 30m²/h
| Model | KO-6090 |
| Application | phone cases, keychains, mugs, badge, token, artwork, decorative panels, custom packaging for luxury items, promotional items |
| Printhead | Epson XP600/I3200/I1600 Ricoh G5I options |
| Print width | 600*900mm |
| Print height | 0~ 200mm |
| Speed | xp600:4.5~10㎡/h; i3200：13.5~30㎡/h |
| Color | CMYK+W+varnish |
| Software | RIIN |
| Ink Droplet Size | 3.5PL |
| Printer size | 170*135*84cm |
| Print weight | 140kg |
| Package | Wooden |

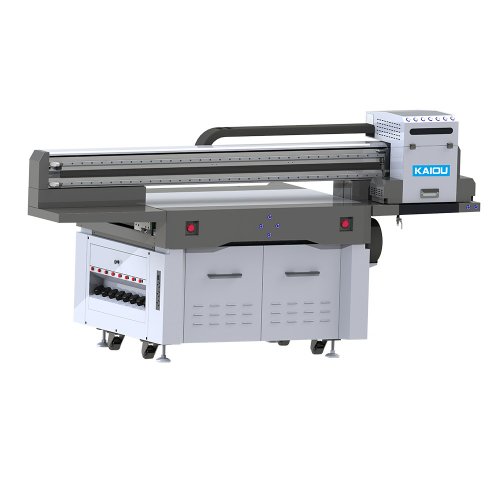

CCD visual positioning uv printer, 40% faster production speed compared to ordinary uv printer.
| Model | KO-1260 |
| Application | phone cases, keychains, mugs, badge, token, artwork, decorative panels, custom packaging for luxury items, promotional items, golf ball, pen, USB drivers, Lipstick tubes, cosmetic boxes, toy Rubik's Cubes, leather etc. |
| Printhead | Toshiba CE4M*2-6 |
| Print width | 1200*600mm |
| Print height | 0~100mm |
| Speed | Max 13㎡/h |
| Color | CMYK+W+varnish |
| Software | PRINTFACTORY |
| Ink Droplet Size | 5-35PL |
| Printer size | 257*111*134cm |
| Print weight | 380kg |
| Package | Wooden |
